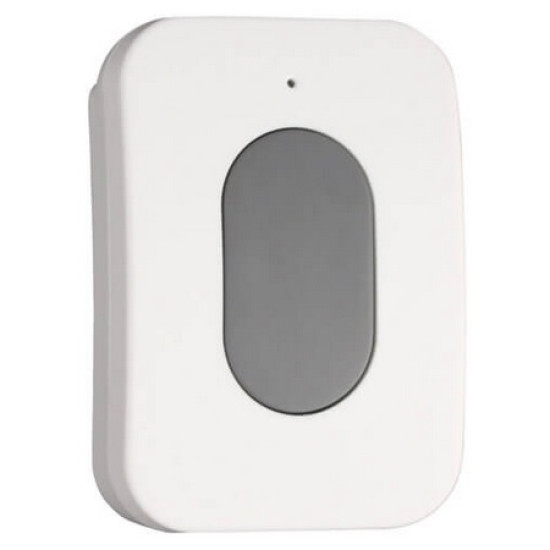

2GIG-PANIC100-345 2GIG 345S Wireless Panic Button Pendant Remote for 2GIG GC Touch, 2GIG Edge, 2GIG GC2e, and 2GIG GC3e Panels

Model Number: 2GIG-PANIC100-345

• Repeats 2GIG and Honeywell signals on 345MHz frequency
• 24-hour backup battery included
• Repeat indicator in the signal eliminates “repeated signal storm”
• Optional zone programming to supervise Tamper, AC Loss, and Low Battery

The 2GIG Panic Button Remote is a compact, battery-powered, wireless device that transmits an emergency signal from any location within RF range of the control panel, regardless of whether the system is armed or disarmed. It can be mounted on a wall or worn using one of several options: lanyard, wristband, belt clip, or car visor clip. The button is fully water-resistant, ensuring reliable performance even in damp environments. To prevent accidental activations, it features a five-second button lockout after use.

Specifications

• Wireless Signal Range - 500 ft (152.4m), open air, with Wireless Copnrol Panel
• Code Outputs - Alarm; Supervisory; Low Battery
• Transmitter Frequency - 345.000 MHz (crystal controlled)
• Unique ID Codes - Over one (1) million different code combinations
• Supervisory Interval - 70 minutes
• LED - RED when activated
• Dimensions (L x W x H) - 1.65 x 1.20 x 0.50 in. (4.19 x 3.05 x 1.27 cm)
• Weight (including battery and bracket) - 0.45 oz. (12.8 g)
• Housing Material - ABS Plastic
• Color - White, black button
• Operating Temperature - 32°-120° F (0°-49° C)
• Relative Humidity - Water-Resistant
• Batteries (Installed) - One (1) Panasonic CR 2032 or equivalent Lithium battery
• Certification - FCC/IC and ETL

2GIG-PANIC100-345 Specifications PDF
